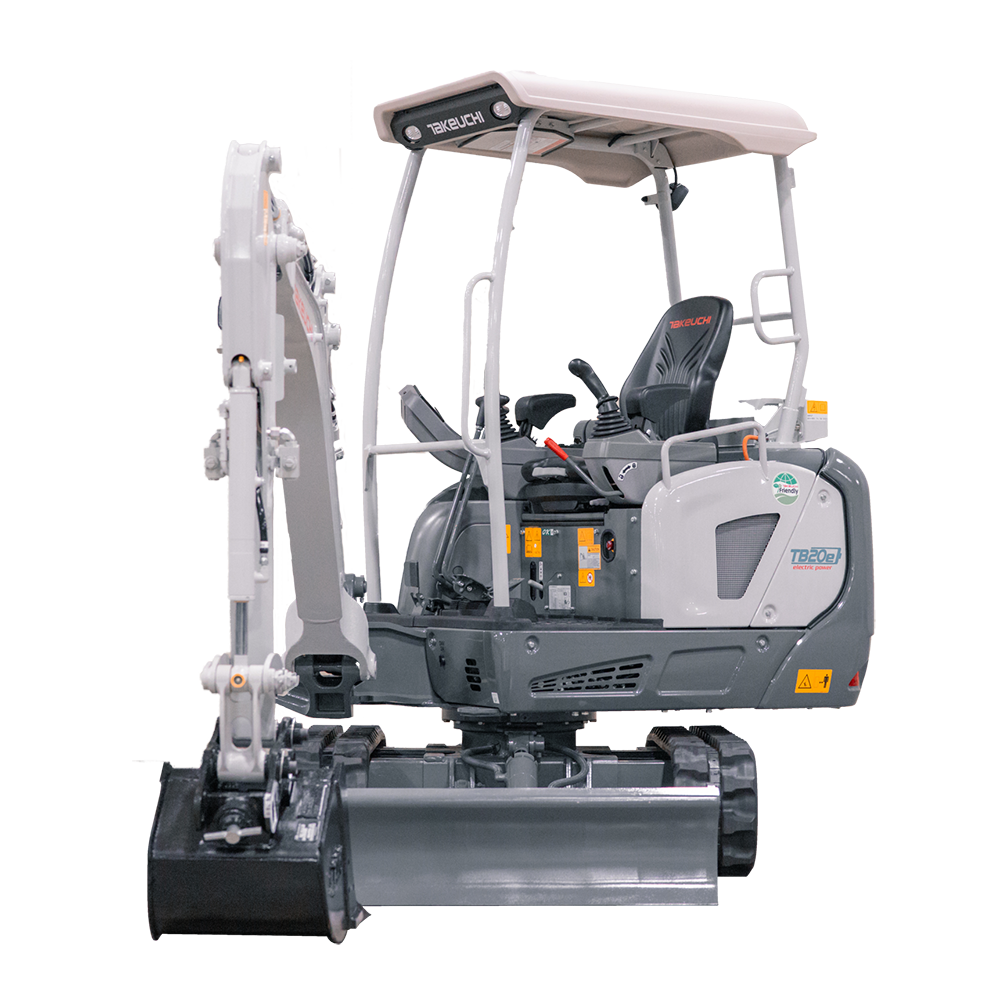

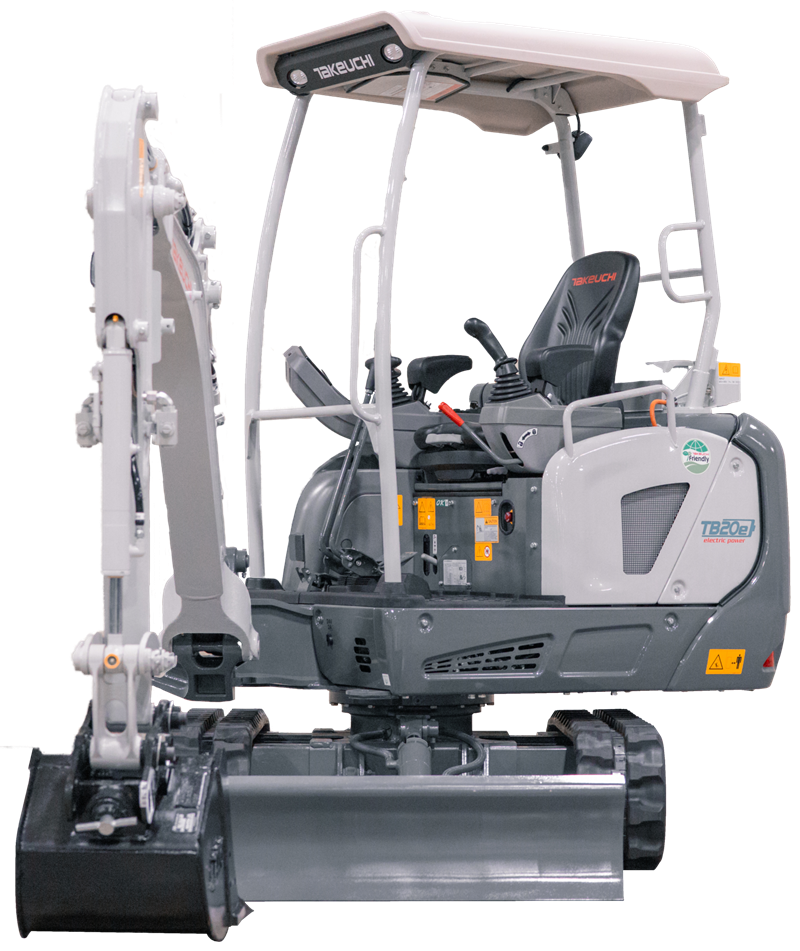

Takeuchi TB20e Compact Electric Excavator

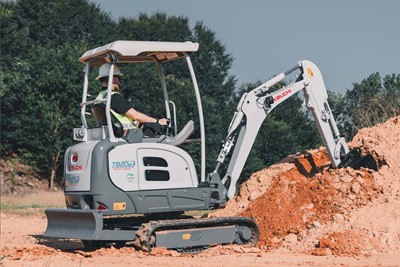

  • As Takeuchi looks to the future and how it can be better stewards of the environment, it has once again tapped into the spirit of creation and innovation and developed the all-electric TB20e compact hydraulic excavator. The beauty of the TB20e is that it is a zero operating emission and low noise level compact excavator with the same performance features and capabilities as diesel powered machines in the same class.
  • (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
Operating weight

1,930kg

Engine Power

24.7 kWh Lithium-Ion Battery

Bucket Capacity

0.038m3

Bucket Breakout Force

13.7kN

Maximum Dig Depth

2,390mm

Download Product Sheet

The Four Pillars

  • 100% Lithium-Ion battery power ensures zero emission operation making the TB20e ideal for working in a wide range of applications that include food processing facilities, indoor demolition, hospitals and schools.
  • Reduced noise and vibration levels enable the operator to work in areas sensitive to noise pollution.
  • When control levers/switches are not utilized, RPM of motors will be reduced automatically to conserve energy.
  • Impressive run times and the ability to operate while tethered ensure you can complete jobs in a timely and efficient manner.
  • The onboard charger allows the TB20e to be charged using 95V to 265V single phase power.

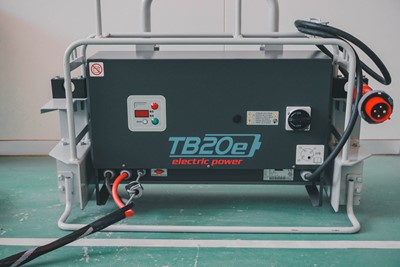

  • An optional off-board charger will charge the TB20e using 340V to 460V three phase power.

  • TOPS / ROPS / OPG Canopy – Provides the operator with greater peace of mind.

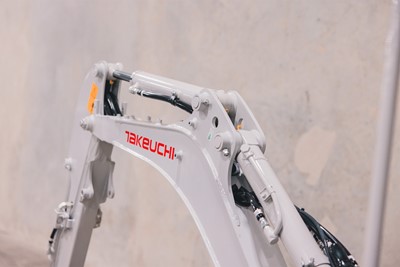

  • Top mounted boom cylinder and hydraulic lines that are routed through the boom and arm delivers exceptional protection from job site hazards.
  • Body integrity is due to all steel construction of the TB20e which provides greater rigidity and strength and protects key components from damage.
  • A heavy-duty counterweight protects vital components from damage.
  • Cushioned cylinders improve longevity by reducing shock and they reduce felt recoil to the operator for greater comfort.

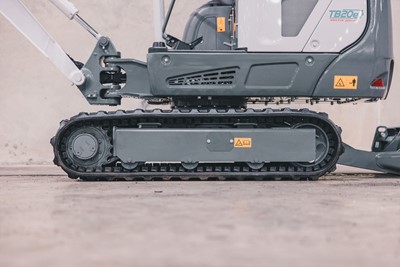

  • Triple flange track rollers improve track life by providing greater support of the track system and they maintain multiple contact points during operation reducing the risk of de-tracking.

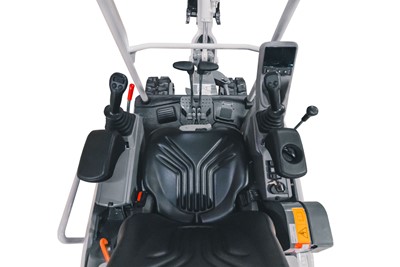

  • Comfort and Convenience – The operator’s station on the TB20e is well appointed and spacious for outstanding comfort.
  • A high definition, multifunction colour monitor allows the operator to view machine vitals and performance levels as they work.
  • EH joystick controls are low effort and precise.

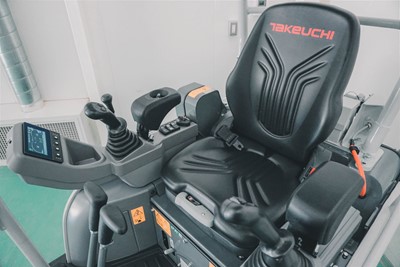

  • The suspension seat ensures operator comfort throughout the workday.
  • A spacious, open floor area provides more foot space and makes it easier to enter and exit the machine.
  • Stay in your seat – Hydraulic flow can be adjusted from the comfort of the operator’s seat.
