name: Takeuchi TB210R Compact Excavator

introtitle: Takeuchi TB210R Compact Excavator

name: Takeuchi TB210R Compact Excavator

introvideo: HHCTH0GGGlI

maxloadcapacity: 0

maxliftheight: 0

minaislewidth: 0

showNoStockMessage: False

indoor: False

outdoor: True

availableforpurchase: True

availableforhire: False

surface: Concrete, Bitumen, Loose Gravel, Compacted gravel, Paved, Unsealed (dirt & grass)

Industry name: Manufacturing / Construction / Maintenance

Industry image:

Industry name: Forestry Products / Timber / Mining

Industry image:

Industry name: Landscaping / Nursery

Industry image:

Industry name: Retail / Department Stores

Industry image:

tagline:

forkliftlistload: Operating Weight: 1,150kg

forkliftlistindooroutdoor: Rated Power: 12Hp/ 8.86kW

forkliftlistuse: Max Dig Depth: 1755mm

brochure: https://www.toyotamaterialhandling.com.au/media/3fbfdkyh/tmha_takeuchi_brochure_compactexcavator_tb210r_fa_lr.pdf

promoBannerLink: https://www.toyotatakeuchi.com.au/finance/

largeImage1:

largeImage2:

largeImage3:

largeImage4:

largeImage5:

tk_operatingWeight: 1,150kg

tk_engine: Kubota/D722-E4B

tk_emission: EU Stage V/EPA Tier 4 Emission Compliant

tk_enginePower: 12Hp/8.86kW

tk_bucketCapacity: 0.022m³

tk_armBreakoutForce: 6.4kN

tk_bucketBreakoutForce: 11.2kN

tk_machineWidth: 1,020/750

tk_maximumLoadingWeight:

tk_power:

tk_operatingWeightKg: 1150

tk_tailSwing: Short

promoBanner:

image:

intro:

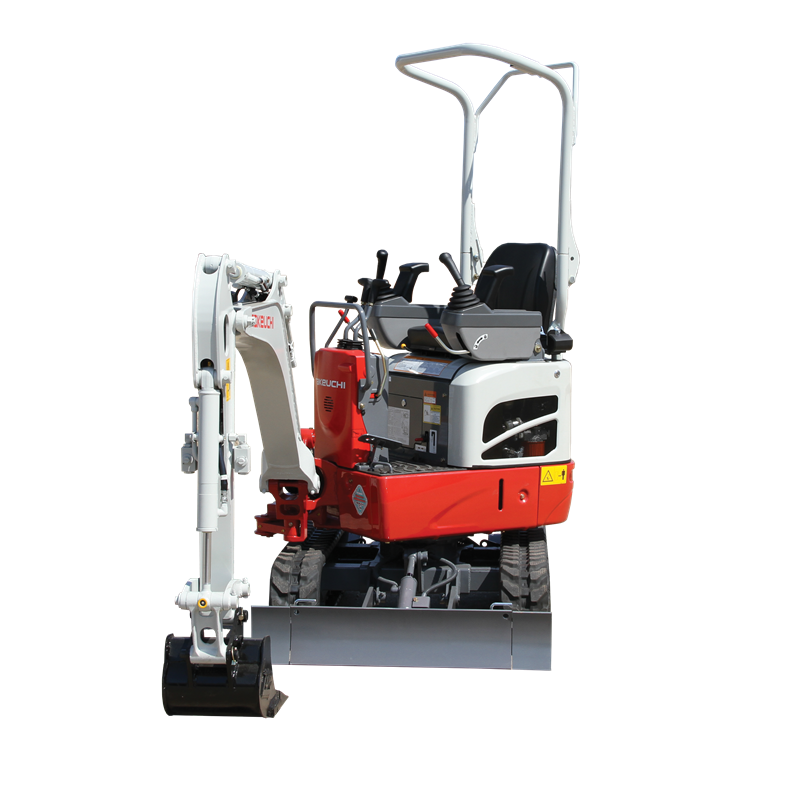

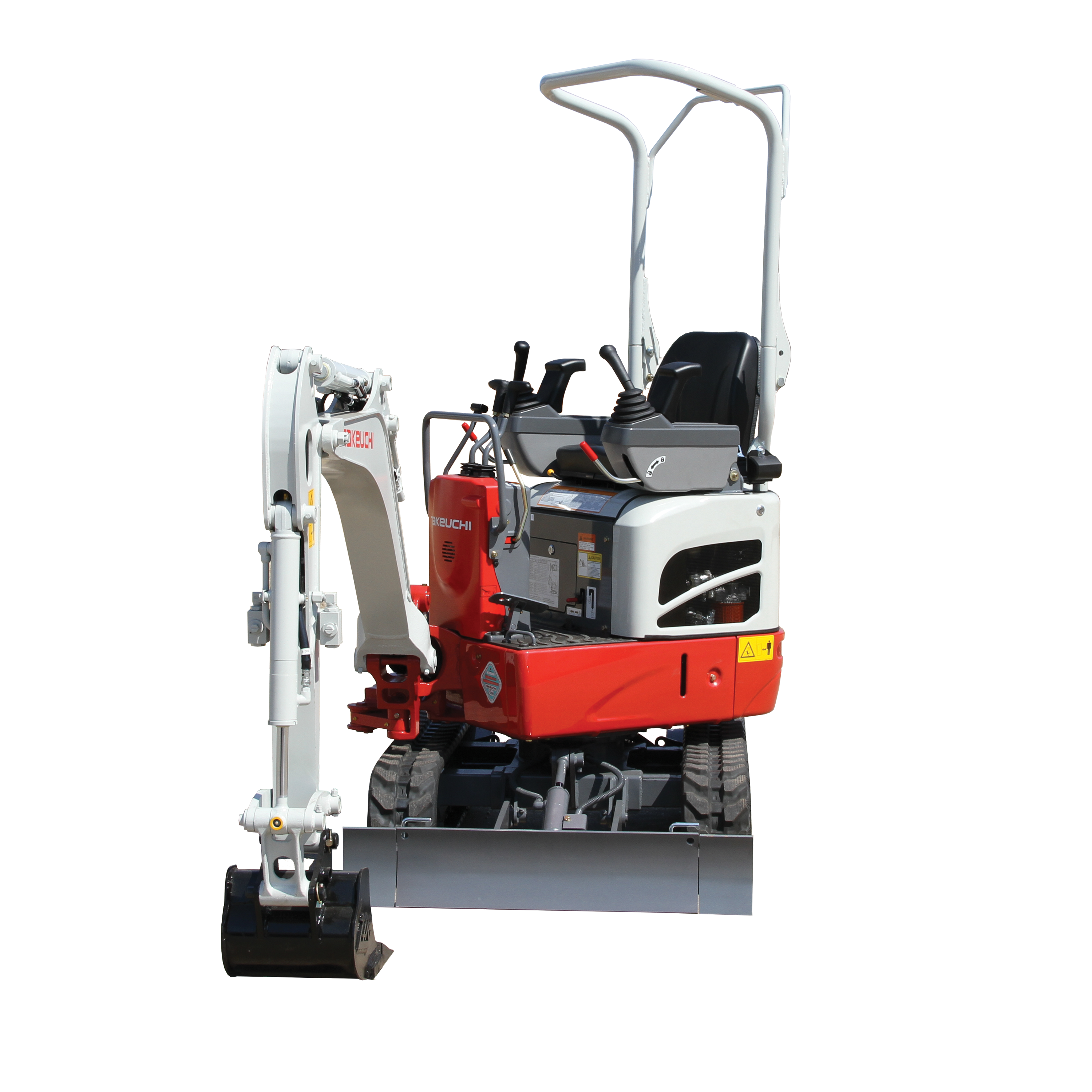

• The TB210R delivers excellent performance and provides an impressive feature set in a very compact design. It features a retractable undercarriage, foldable ROPS, and short tail swing enabling the TB210R to work in the most confined applications.
• (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

tk_ratedOperatingLoad:

tk_maximumDigDepth: 1,755mm

feature heading: Performance

feature intro:

feature content:

• Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.

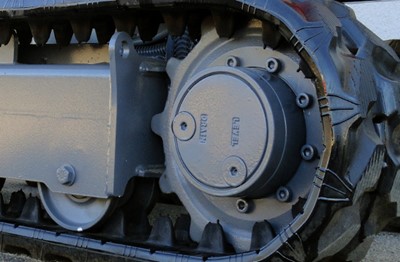

• Powerful Traction Force – for excellent turning and travel performance in varying conditions.

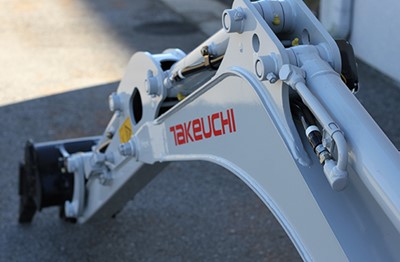

• Boom Arm – provides greater working range and features two-way auxiliary hydraulics with shut-off valves.
• Improved Two Speed - convenient push button on the right travel lever to shift from low to high speed.
• Minimal tail swing allows the operator to work in confined applications without concern of rear swing impacts.

feature heading: Durability

feature intro:

feature content:

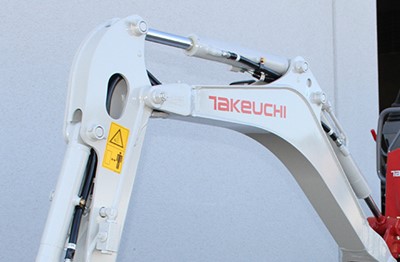

• Top Mount Boom Cylinder – helps protect the boom cylinder from damage from the bucket and debris.
• Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
• Double Flange Track Rollers – provide greater contact between the roller and rail for improved track retention.
• Protected Hydraulic Plumbing – all hoses for working equipment are routed through the boom and arm for an extra level of protection, and greater visibility of the work equipment.

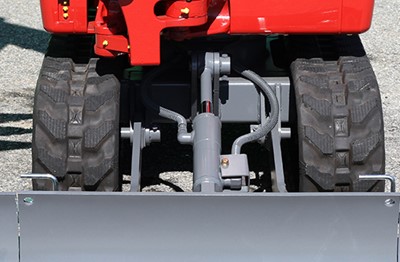

• Spiral Wrapped Lines – protect the blade cylinder hydraulic lines from damage due to rocks and debris.
• All Steel Construction – Protects components and ensures long term durability.

feature heading: Operator Comfort

feature intro:

feature content:

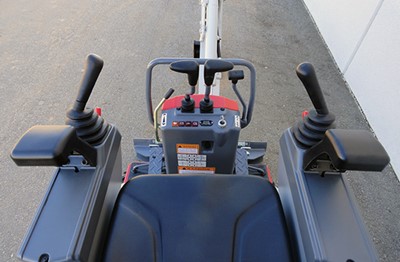

• Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
• Optional Pattern Change Valve – will allow the operator to choose their preferred operational pattern for greater efficiency and safety.
• Arm Rests – fully support the operator’s arm for improved comfort.
• Dual Entry Points – make it easier for the operator to enter or exit the machine from either side.
• Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.
• Convenient Handle – makes it easy to enter and exit the machine from both the right and left side.

feature heading: Serviceability

feature intro:

feature content:

• Excellent Serviceability – allows all key service and maintenance points to be inspected quickly and easily.

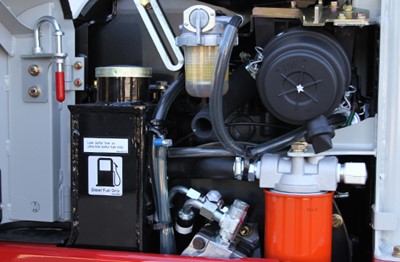

• Side Access Panel – houses dual element air cleaner, fuel filter with shut-off, hydraulic filter, and fuel tank with sight gauge.

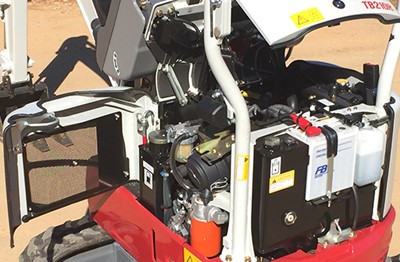

• Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
• Front Compartment – provides outstanding access to the alternator, engine oil filter and engine oil dipstick.
• Selector Valve – located under the operator’s seat allows operator to quickly choose one way or two auxiliary hydraulic flow.
• Lockable Fuel Fill – is convenient and secure. A remote gauge is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.

tk_enginePowerHp: 12

tk_maximumDigDepthMm: 1755

tk_ratedOperatingLoadKg: 0

feature:

tk_power:

tk_engineMake:

tk_engineMake:

tk_mobility: Tracked
