name: Takeuchi TB216 Compact Excavator

introtitle: TB216 Compact Excavator

name: Takeuchi TB216 Compact Excavator

introvideo: g_l3-P6G5oo

maxloadcapacity: 0

maxliftheight: 0

minaislewidth: 0

showNoStockMessage: False

indoor: False

outdoor: True

availableforpurchase: True

availableforhire: False

surface: Concrete, Bitumen, Loose Gravel, Compacted gravel, Paved, Unsealed (dirt & grass)

Industry name: Manufacturing / Construction / Maintenance

Industry image:

Industry name: Forestry Products / Timber / Mining

Industry image:

Industry name: Landscaping / Nursery

Industry image:

tagline:

forkliftlistload:

forkliftlistindooroutdoor:

forkliftlistuse:

brochure: https://www.toyotamaterialhandling.com.au/media/u3jceok1/tmha_takeuchi_brochure_compactexcavator_tb216_fa_lr.pdf

promoBannerLink:

largeImage1:

largeImage2:

largeImage3:

largeImage4:

largeImage5:

tk_operatingWeight: 1,770kg

tk_engine: Yanmar/3TNV70

tk_emission: EU Stage V/EPA Tier 4 Emission Compliant

tk_enginePower: 15Hp/11.5kW

tk_bucketCapacity: 0.038m³

tk_armBreakoutForce: 9.5kN

tk_bucketBreakoutForce: 14.0kN

tk_machineWidth: 980/1,300

tk_maximumLoadingWeight:

tk_power:

tk_operatingWeightKg: 1170

tk_tailSwing: Standard

promoBanner:

image:

intro:

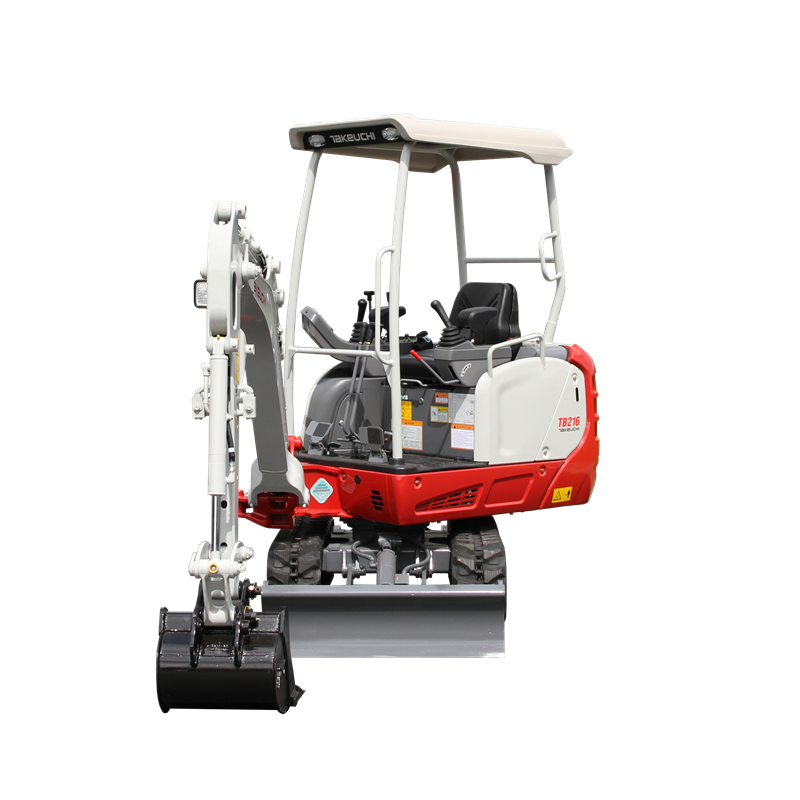

• TB216 provides the operator with a blend of power and functionality.  It is completely designed for greater operator comfort, performance, and serviceability.
• (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

tk_ratedOperatingLoad:

tk_maximumDigDepth: 2,190mm

feature heading: Performance

feature intro:

feature content:

• Compact and Convenient – The TB216 delivers excellent size and balance for restricted job sites.

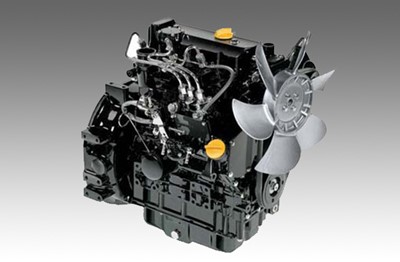

• Engines that meet latest emissions standards – are efficient and powerful and does not require any exhaust aftertreatment systems.

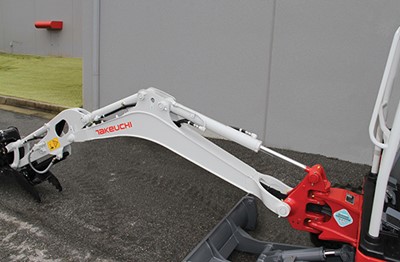

• Excellent Reach – the optimized boom and arm design delivers excellent reach for greater productivity.
• Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
• Improved Drive System – Provides 15% more tractive force that the previous machine and now features automatic downshift for better turning, traveling and backfilling.

feature heading: Durability

feature intro:

feature content:

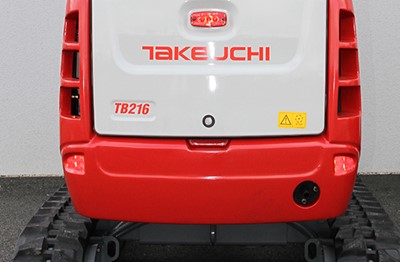

• Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
• Top Mount Boom Cylinder – helps protect the boom cylinder from damage from the bucket and debris.
• Protected Hydraulic Plumbing – all hoses for working equipment are routed through the boom and arm for an extra level of protection, and greater visibility of the work equipment.

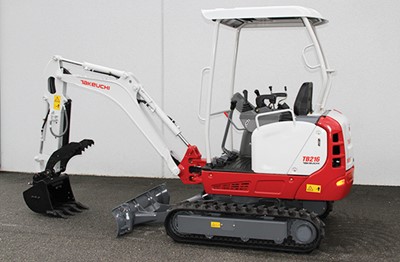

• All Steel Construction – Protects components and ensures long term durability.
• Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.

feature heading: Operator Comfort

feature intro:

feature content:

• Multi-Information Display – Is easy to read in all lighting conditions and keeps the operator informed on the status of the machine.

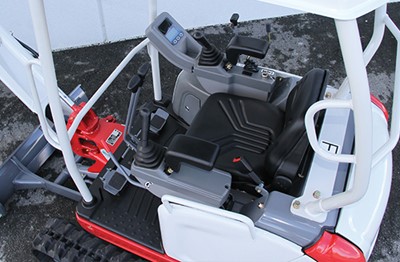

• Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.
• TOPS/ROPS/OPG – offers operator protection and peace of mind.

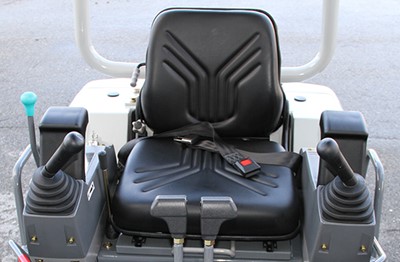

• Suspension Seat – Provides weight adjustment along with fore and aft movement and is also equipped with a 2-inch retractable seat belt.
• Adjustable Arm Rest – Help provide a comfortable operating position for the precision pilot controls.
• Optional Pattern Change Valve – will allow the operator to choose their preferred operational pattern for greater efficiency and safety.

feature heading: Servicability

feature intro:

feature content:

• High-Capacity Cooling System – Uses heavy duty side-by-side radiator and hydraulic cooler for optimum cooling.
• Lockable Fuel Fill – is convenient and secure. A remote gauge is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.

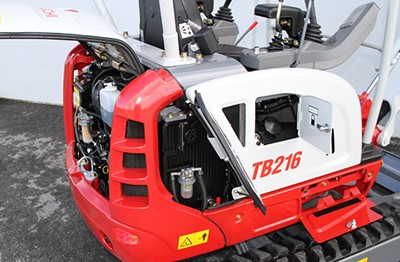

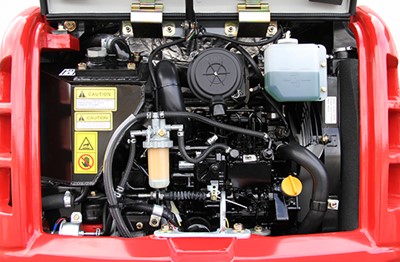

• Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
• Under Seat Component Access – the battery and electrical components are conveniently located under the operator’s seat along with the pattern change valve.

tk_enginePowerHp: 15

tk_maximumDigDepthMm: 2190

tk_ratedOperatingLoadKg: 0

feature:

tk_power:

tk_engineMake:

tk_engineMake:

tk_mobility: Tracked
