name: Takeuchi TB217R Compact Excavator

introtitle: Takeuchi TB217R Compact Excavator

name: Takeuchi TB217R Compact Excavator

introvideo: 6-ZISsDqqu4

maxloadcapacity: 0

maxliftheight: 0

minaislewidth: 0

showNoStockMessage: False

indoor: False

outdoor: True

availableforpurchase: True

availableforhire: False

surface: Concrete, Bitumen, Loose Gravel, Compacted gravel, Paved, Unsealed (dirt & grass)

Industry name: Manufacturing / Construction / Maintenance

Industry image:

Industry name: Forestry Products / Timber / Mining

Industry image:

Industry name: Landscaping / Nursery

Industry image:

tagline:

forkliftlistload:

forkliftlistindooroutdoor:

forkliftlistuse:

brochure: https://www.toyotamaterialhandling.com.au/media/n24hy0m4/tmha_takeuchi_brochure_compactexcavator_tb217r_fa_lr.pdf

promoBannerLink:

largeImage1:

largeImage2:

largeImage3:

largeImage4:

largeImage5:

tk_operatingWeight: 1,680kg

tk_engine: Yanmar/3TNV70

tk_emission: EU Stage V Emission Compliant

tk_enginePower: 5Hp/11.5kW

tk_bucketCapacity: 0.038m³

tk_armBreakoutForce: 9.5kN

tk_bucketBreakoutForce: 14.0kN

tk_machineWidth: 980/1,300

tk_maximumLoadingWeight:

tk_power:

tk_operatingWeightKg: 1680

tk_tailSwing: Short

promoBanner:

image:

intro:

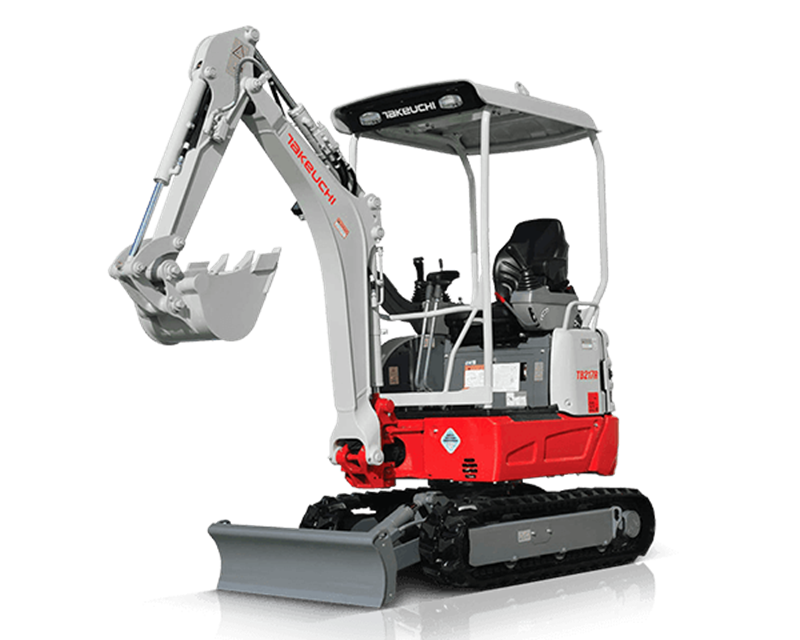

• The TB217R is a short tail swing design allowing it to work in confined job sites with little concern for rear swing impacts.  It features a retractable undercarriage enabling it to enter a job site with limited access, and once in position the track frame can be expanded for improved stability.
• (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

tk_ratedOperatingLoad:

tk_maximumDigDepth: 2,190mm

feature heading: Performance

feature intro:

feature content:

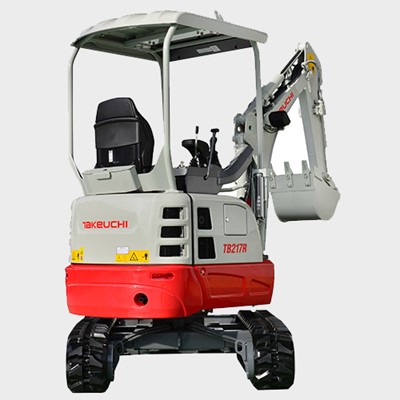

• Minimal Tail Swing – allows the TB217R to work in the most confined applications for even greater versatility.
• The engine is efficient and powerful and meets the latest emission standards.
• Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
• Improved Two Speed – features a convenient push button on the right travel lever to shift from low to high speed.

feature heading: Durability

feature intro:

feature content:

• Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.

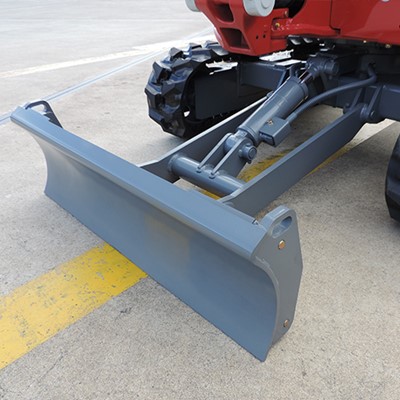

• Heavy duty dozer blade features integrated anchor points.

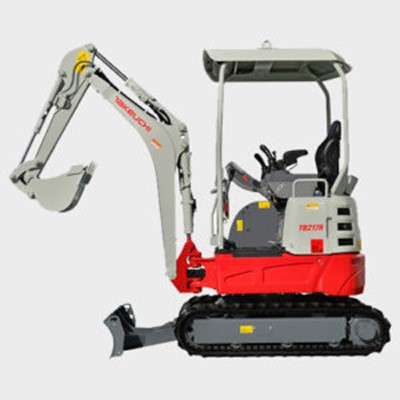

• All Steel Construction – Protects components and ensures long term durability.
• Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.

feature heading: Operator Comfort

feature intro:

feature content:

• Multi-information display is easy to read and provides critical machine data to the operator.
• Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
• Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.

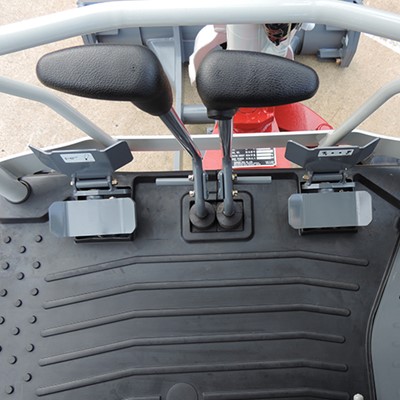

• The operator’s station features ample leg room with easy access to the boom swing and auxiliary hydraulic control pedals.

feature heading: Servicability

feature intro:

feature content:

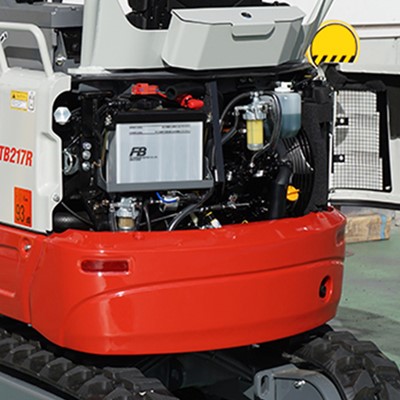

• Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.

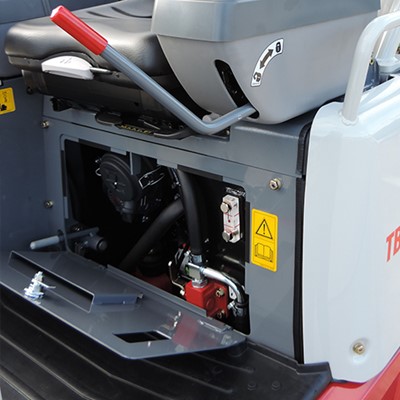

• Hydraulic oil sight gauge is easy to view as you enter the machine.
• Lockable Fuel Fill – is convenient and secure. A remote gauge is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.

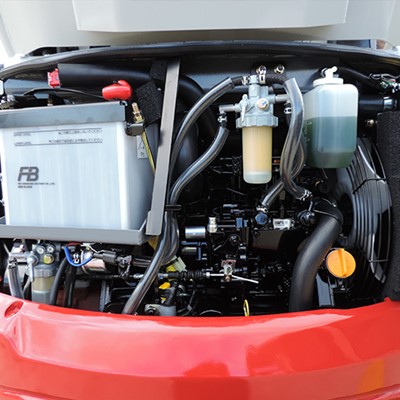

• Fuel and engine oil filters, engine oil dipstick and fill, and coolant reserve tank are easily accessed from the rear of the machine.

tk_enginePowerHp: 5

tk_maximumDigDepthMm: 2190

tk_ratedOperatingLoadKg: 0

feature:

tk_power:

tk_engineMake:

tk_engineMake:

tk_mobility: Tracked
