name: Takeuchi TB225 Compact Excavator
introtitle: Takeuchi TB225 Excavator
name: Takeuchi TB225 Compact Excavator
introvideo: PiQVNsScHQI
maxloadcapacity: 0
maxliftheight: 0
minaislewidth: 0
showNoStockMessage: False
indoor: False
outdoor: True
availableforpurchase: True
availableforhire: False
surface: Concrete, Bitumen, Loose Gravel, Compacted gravel, Paved, Unsealed (dirt & grass)
Industry name: Manufacturing / Construction / Maintenance
Industry image:
Industry name: Forestry Products / Timber / Mining
Industry image:
Industry name: Landscaping / Nursery
Industry image:
tagline:
forkliftlistload:
forkliftlistindooroutdoor:
forkliftlistuse:
brochure: https://www.toyotamaterialhandling.com.au/media/cvcprqgb/tmha_takeuchi_brochure_compactexcavator_tb225_fa_lr.pdf
promoBannerLink:
largeImage1:
largeImage2:
largeImage3:
largeImage4:
largeImage5:
tk_operatingWeight: 2,400kg
tk_engine: Yanmar/3TNV82A
tk_emission: EU Stage V Emission Compliant
tk_enginePower: 22Hp/16.5kW
tk_bucketCapacity: 0.064m³
tk_armBreakoutForce: 13.8kN
tk_bucketBreakoutForce: 19.3kN
tk_machineWidth: 1100/1500mm
tk_maximumLoadingWeight:
tk_power:
tk_operatingWeightKg: 2400
tk_tailSwing: Standard
promoBanner:
image:
intro:

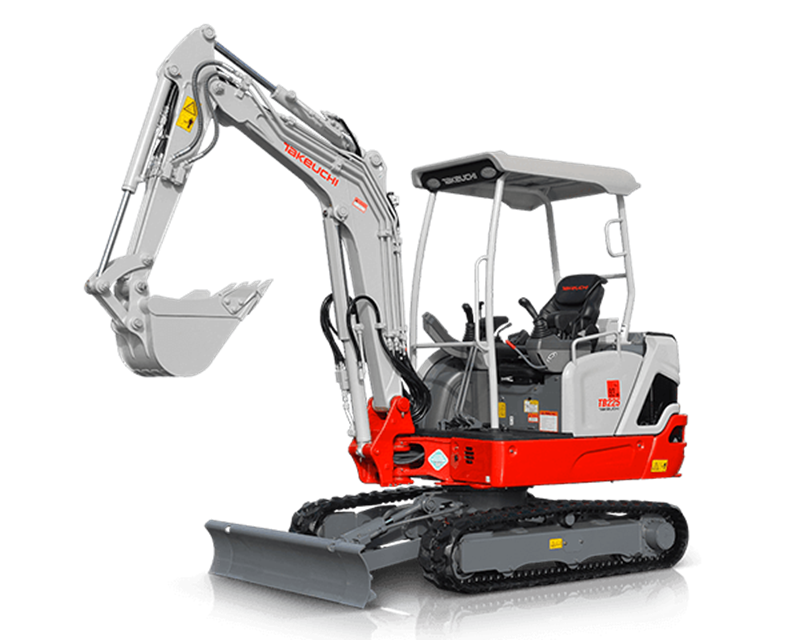

- The TB225 features all steel construction, a spacious operator station, smooth hydraulic pilot joystick controls that deliver precise responsive controls and best in class engine output. The TB225 provides outstanding arm and bucket breakout force, dig depth, reach and lifting capacity for maximum productivity making it a great choice for the most demanding applications.
- Additional features include automatic fuel bleed system, standard auto decelaration, a large wraparound counterweight and hydraulically retractable track frame that can be adjusted from 1,100 mm to 1,500 mm. The operator is protected by a TOPS / ROPS / OPG cab and canopy that keeps the operator safe and comfortable on any job site.
- (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
tk_ratedOperatingLoad:
tk_maximumDigDepth: 2580mm
feature heading: Performance
feature intro:
feature content:

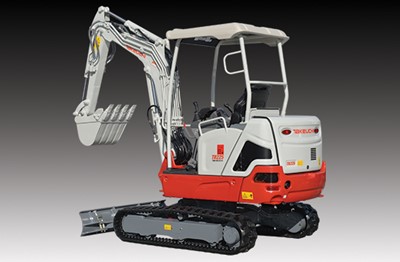

- Powerful Dig Forces – Takeuchi’s excellent arm and bucket power provide the perfect combination of power, speed, and versatility at your fingertips.

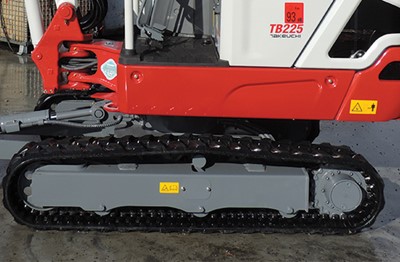

- Automatic Step Down Travel Motors – Provide torque on demand when pushing, climbing, or turning in high speed mode.
- Standard Auxiliary Hydraulics – Simplify installation of hydraulic attachments improving productivity and limiting downtime.
- Shut-off Valve – Simplify attachment installation and limit the release of hydraulic oil.
- The engine output of a much bigger machine – allows more power and increases productivity.
- Retractable undercarriage which can be adjusted from 1,100 mm to 1,500 mm – allow the machine to be configured for excellent working stability and optimum performance. Dozer blade width is easily adjusted by using retained pin.
feature heading: Durability
feature intro:
feature content:

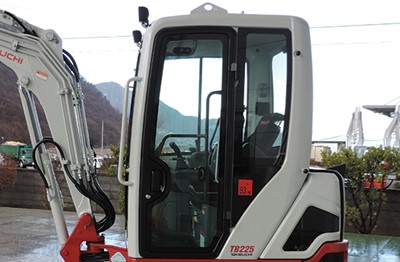

- TOPS / ROPS / OPG Cab and Canopy – provides the operator with greater peace of mind.
- Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.
- Heavy Duty Counterweight – Offers wrap around protection and contributes to the excellent stability.

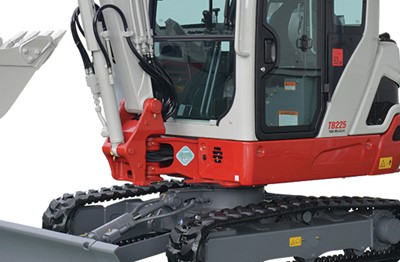

- Weld Quality – High quality steel and superior weld quality ensure durability and longevity.
- All Steel Construction – The engine hood and right access panel are all steel for increased durability.
- Heavy Duty Blade – Integrated gusset reinforcements and large blade cylinder give you the strength and durability you expect from the class leader.
feature heading: Operator Comfort
feature intro:
feature content:
- Folding Foot Pedals – Can be placed in the stowed position for additional foot space improving operator comfort.

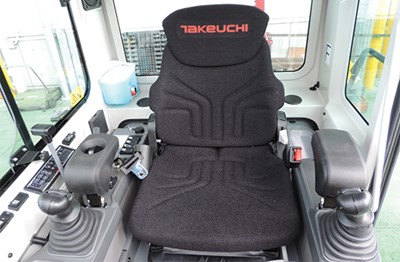

- Suspension Seat– Provides back rest adjustment and weight adjustment along with fore and aft movement and is also equipped with a 2-inch retractable seat belt.

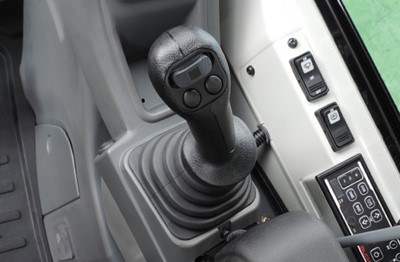

- Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
- Easy-to-Read Multi-Informational Display – provides the operator with the status of machine’s critical functions.
feature heading: Servicability
feature intro:
feature content:

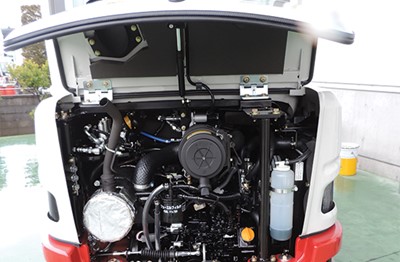

- Rear Engine Hood – allows access to the dipstick, double element air cleaner, pilot line and fuel filter, pump group and coolant expansion tank.

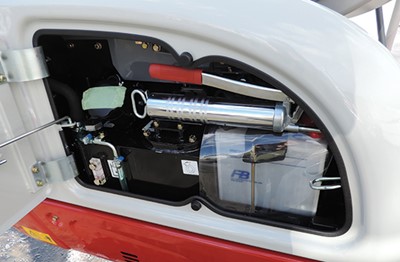

- Right Access Panel – provides excellent access to the battery, fuel fill and hydraulic tank.
- Lockable Fuel Fill – is convenient and secure. A remote gauge is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.
- Keep it Clean – Improved fuel filtration and the use of low sulphur fuel will ensure proper engine performance.
tk_enginePowerHp: 22
tk_maximumDigDepthMm: 2580
tk_ratedOperatingLoadKg: 0
feature:
tk_power:
tk_engineMake:
tk_engineMake:
tk_mobility: Tracked
