Takeuchi - Takeuchi TB290-2 Compact Excavator

excavators

Operating Weight: 8,400 kg

Rated Power: 69 Hp

Maximum Dig Depth: 4,580 mm

Call Us on 1800 425 438

Enquire Online

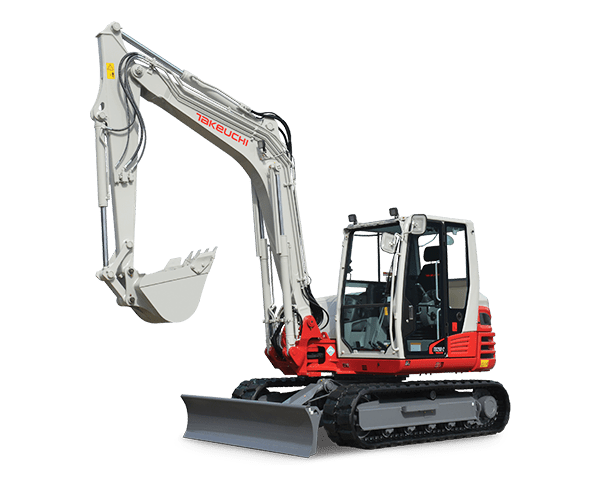

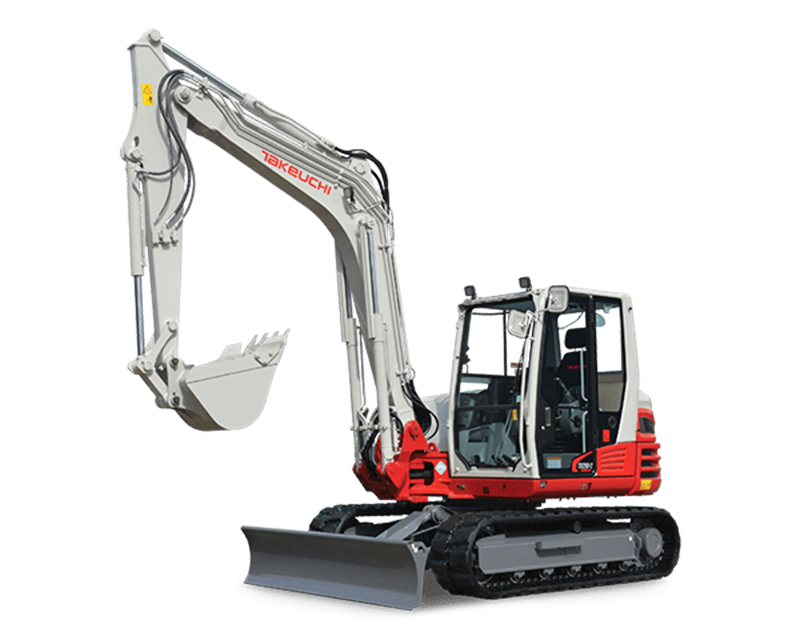

Takeuchi TB290-2 Compact Excavator

The TB290-2 has a wide array of features that maximize efficiency and productivity. A closed center, load sensing hydraulic system allows it to have outstanding multi-function capabilities, and multiple attachment presets and ability to adjust auxiliary flow rates from the cab greatly expands the machines versatility. Service and maintenance access is greatly enhanced with an engine hood and side cover that open high overhead for unmatched ground level serviceability.
(Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

Operating weight

8,400kg

Engine

Yanmar/4TNV98CT

Emmissions

EU Stage V/EPA Tier 4 Compliant

Engine Power

69 Hp/51.6kW

Bucket Capacity

0.25m³

Bucket Breakout Force

59.1kN

Maximum Dig Depth

4,580mm

Machine Width

2,140mm

Download Product Sheet

The Four Pillars

Powerful Turbocharged Engine – Provides increased horsepower and greater torque for improved performance.
Optimized Design – The rounded design features a contemporary look, and the conventional tail swing delivers excellent stability.

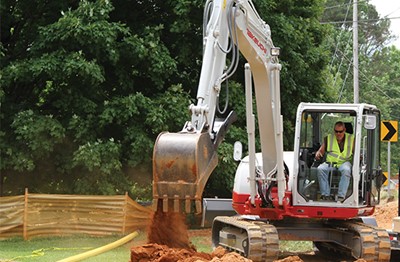

Powerful Dig Forces – Takeuchi’s excellent arm and bucket power provide the perfect combination of power, speed, and versatility at your fingertips.

All Steel Construction – Protects components and ensures long term durability.

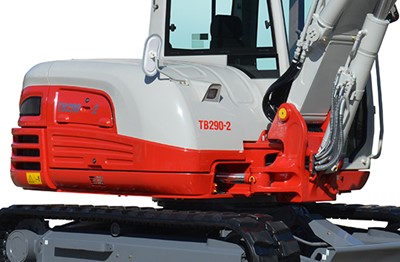

Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.

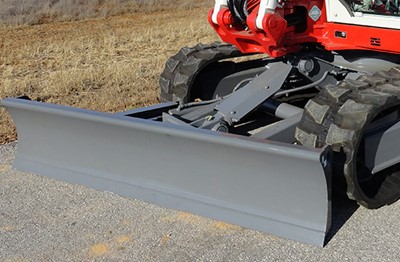

Heavy Duty Blade – Integrated gusset reinforcements and large blade cylinder give you the strength and durability you expect from the class leader.

LCD Multi Information Display – Is easy to read in all light conditions and provides the operator with outstanding functionality and valuable machine data.

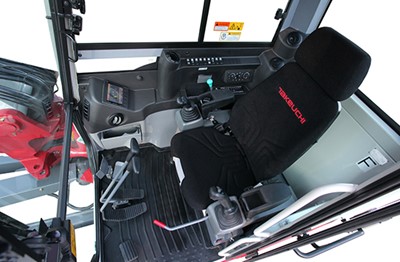

Spacious Automotive Styled Interior – Ensures operator comfort and provides a functional work area with a large multi-information display, automatic climate control, and various function switches to improve performance.
Suspension Seat – Provides multiple seat adjustment such like weight adjustment along with fore and aft movement and is also equipped with a 2-inch retractable seat belt.
Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
Large Travel Pedals – Fully support the operator’s feet for greater comfort and control while traveling. Additionally, pedals are raised off floor to reduce build-up of dirt and debris that can limit or impede travel functions.

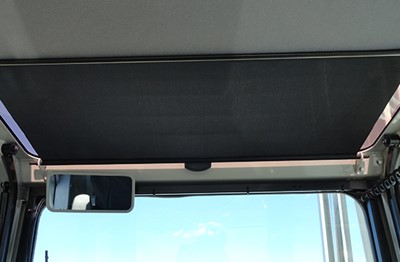

Top Glass with Sunshade – Improves visibility for truck loading or to overhead obstacles, such as, power lines, and the sun shade reduces glare for greater operator comfort.

Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
None Better – The new service access hood eliminates the tilt-up cabin, and provides outstanding access to the control valve, hydraulic lines, hydraulic tank, and optional pattern change valve.
Heavy Duty Cooling System – The side-by-side radiator and oil cooler features increased cooling capacity and are easy to inspect, clean and maintain.
Lockable Fuel Fill – is convenient and secure. A standard fuel transfer pump is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.

Call Us on 1800 425 438

Enquire Online

Similar Products

name: Takeuchi TB290-2 Compact Excavator

introtitle: Takeuchi TB290-2 Excavator

name: Takeuchi TB290-2 Compact Excavator

introvideo: joNNVZfoqB8

maxloadcapacity: 0

maxliftheight: 0

minaislewidth: 0

showNoStockMessage: False

indoor: False

outdoor: True

availableforpurchase: True

availableforhire: False

surface: Concrete, Bitumen, Loose Gravel, Compacted gravel, Paved, Indoor / Outdoor

Industry name: Manufacturing / Construction / Maintenance

Industry image:

Industry name: Forestry Products / Timber / Mining

Industry image:

Industry name: Landscaping / Nursery

Industry image:

tagline:

forkliftlistload:

forkliftlistindooroutdoor:

forkliftlistuse:

brochure: https://www.toyotamaterialhandling.com.au/media/nbwnhwdk/tmha_takeuchi_brochure_hydraulicexcavator_tb290-2_fa_lr.pdf

promoBannerLink:

largeImage1:

largeImage2:

largeImage3:

largeImage4:

largeImage5:

tk_operatingWeight: 8,400kg

tk_engine: Yanmar/4TNV98CT

tk_emission: EU Stage V/EPA Tier 4 Compliant

tk_enginePower: 69 Hp/51.6kW

tk_bucketCapacity: 0.25m³

tk_armBreakoutForce:

tk_bucketBreakoutForce: 59.1kN

tk_machineWidth: 2,140mm

tk_maximumLoadingWeight:

tk_power:

tk_operatingWeightKg: 8400

tk_tailSwing: Standard

promoBanner:

image:

intro:

The TB290-2 has a wide array of features that maximize efficiency and productivity. A closed center, load sensing hydraulic system allows it to have outstanding multi-function capabilities, and multiple attachment presets and ability to adjust auxiliary flow rates from the cab greatly expands the machines versatility. Service and maintenance access is greatly enhanced with an engine hood and side cover that open high overhead for unmatched ground level serviceability.
(Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

tk_ratedOperatingLoad:

tk_maximumDigDepth: 4,580mm

feature heading: Performance

feature intro:

feature content:

Powerful Turbocharged Engine – Provides increased horsepower and greater torque for improved performance.
Optimized Design – The rounded design features a contemporary look, and the conventional tail swing delivers excellent stability.
Powerful Dig Forces – Takeuchi’s excellent arm and bucket power provide the perfect combination of power, speed, and versatility at your fingertips.

feature heading: Durability

feature intro:

feature content:

All Steel Construction – Protects components and ensures long term durability.
Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
Heavy Duty Blade – Integrated gusset reinforcements and large blade cylinder give you the strength and durability you expect from the class leader.

feature heading: Operator Comfort

feature intro:

feature content:

LCD Multi Information Display – Is easy to read in all light conditions and provides the operator with outstanding functionality and valuable machine data.
Spacious Automotive Styled Interior – Ensures operator comfort and provides a functional work area with a large multi-information display, automatic climate control, and various function switches to improve performance.
Suspension Seat – Provides multiple seat adjustment such like weight adjustment along with fore and aft movement and is also equipped with a 2-inch retractable seat belt.
Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
Large Travel Pedals – Fully support the operator’s feet for greater comfort and control while traveling. Additionally, pedals are raised off floor to reduce build-up of dirt and debris that can limit or impede travel functions.
Top Glass with Sunshade – Improves visibility for truck loading or to overhead obstacles, such as, power lines, and the sun shade reduces glare for greater operator comfort.

feature heading: Serviceability

feature intro:

feature content:

Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
None Better – The new service access hood eliminates the tilt-up cabin, and provides outstanding access to the control valve, hydraulic lines, hydraulic tank, and optional pattern change valve.
Heavy Duty Cooling System – The side-by-side radiator and oil cooler features increased cooling capacity and are easy to inspect, clean and maintain.
Lockable Fuel Fill – is convenient and secure. A standard fuel transfer pump is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.

tk_enginePowerHp: 69

tk_maximumDigDepthMm: 4580

tk_ratedOperatingLoadKg: 0

feature:

tk_power:

tk_engineMake:

tk_engineMake:

tk_mobility: Tracked
