name: Takeuchi TB335R 3.7T Compact Excavator
introtitle: Takeuchi TB335R 3.7T Compact Excavator
name: Takeuchi TB335R 3.7T Compact Excavator
introvideo: a6T_7Cburls
maxloadcapacity: 0
maxliftheight: 0
minaislewidth: 0
showNoStockMessage: False
indoor: False
outdoor: True
availableforpurchase: True
availableforhire: False
surface: Concrete, Bitumen, Loose Gravel, Compacted gravel, Paved, Unsealed (dirt & grass)
Industry name: Manufacturing / Construction / Maintenance
Industry image:
Industry name: Forestry Products / Timber / Mining
Industry image:
Industry name: Landscaping / Nursery
Industry image:
tagline:
forkliftlistload:
forkliftlistindooroutdoor:
forkliftlistuse:
brochure: https://www.toyotamaterialhandling.com.au/media/yzfnajhv/tmha_takeuchi_brochure_compactexcavator_tb335r_fa_lr.pdf
promoBannerLink:
largeImage1:
largeImage2:
largeImage3:
largeImage4:
largeImage5:
tk_operatingWeight: 3,760kg
tk_engine: Kubota/V1505
tk_emission: EU Stage V/ EPA Tier 4 Compliant
tk_enginePower: 24Hp/18.2kW
tk_bucketCapacity: 0.25m³
tk_armBreakoutForce:
tk_bucketBreakoutForce: 59.1kN
tk_machineWidth: 2,140mm
tk_maximumLoadingWeight:
tk_power:
tk_operatingWeightKg: 3760
tk_tailSwing: Short
promoBanner:
image:
intro:

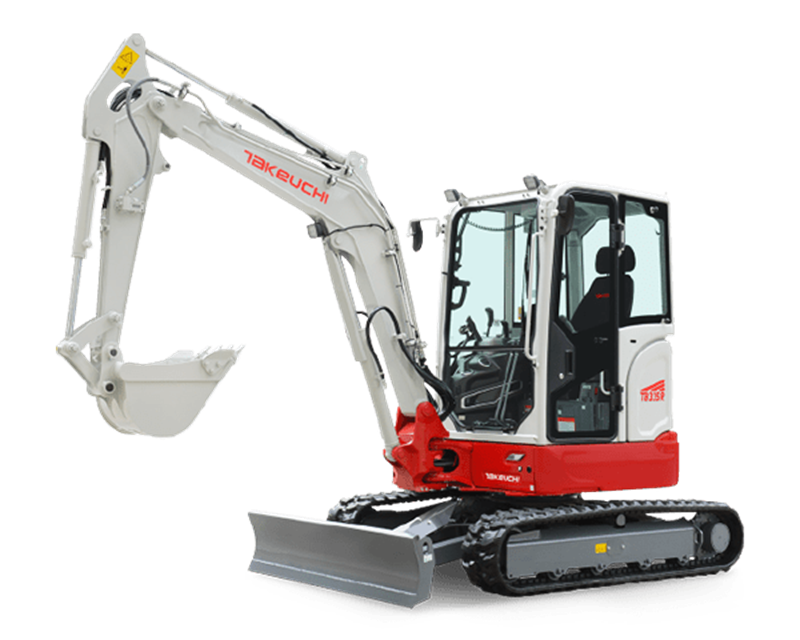

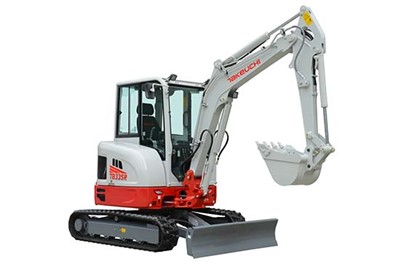

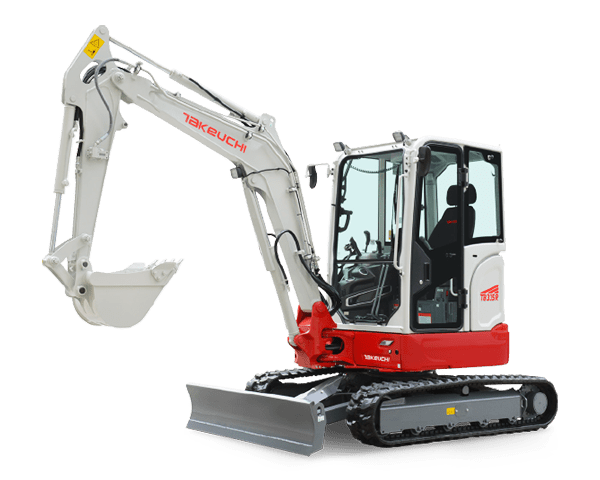

- Takeuchi’s 300 Series excavator, the TB335R, features a short tail swing design that allows operators to focus more on their work and worry less about rear swing impacts. Operators will find that the TB335R’s compact radius provides excellent maneuverability and accessibility at confined worksites without sacrificing stability. The excavator’s powerful bucket and arm crowd forces and a wide working range also deliver unmatched performance.
- (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
tk_ratedOperatingLoad:
tk_maximumDigDepth: 3,205mm
feature heading: Performance
feature intro:
feature content:

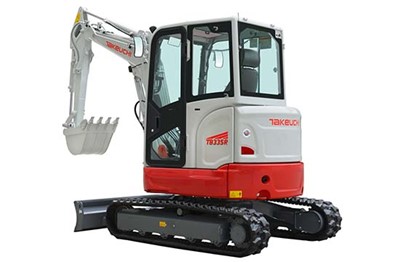

- The short tail swing design – Allows the TB335R to work in confined job sites with little concern for rear swing impact. Only 80 mm overhang beyond the track width enables the operator to work the machine in limited space with complete confidence and improve operating efficiency.
- Automatic Step Down Travel Motors – Provide torque on demand when pushing, climbing, or turning in high speed mode.
- Multiple Auxiliary Hydraulics – Simplify installation of hydraulic attachments improving productivity and limiting downtime.
- Shut-off Valve – Simplify attachment installation and limit the release of hydraulic oil.
- Stay in your Seat – Hydraulic flow can be adjusted from the comfort of the operator’s seat.
- Fuel supply pump under the right side cover automatically supplies fuel to the tank and stops when the fuel tank is full. Operators do not need to check the fuel gauge while filling.
feature heading: Durability
feature intro:
feature content:
- TOPS / ROPS / OPG Cab and Canopy – Provides the operator with greater peace of mind.

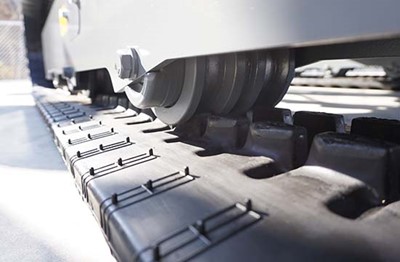

- Triple Flange Track Rollers – Provide increased roller to rail contact improving track retention.
- Heavy Duty Counterweight – Offers wrap around protection and contributes to the excellent stability.
- All Steel Construction – The engine hood and right side cover are all steel for increased durability.
- Heavy Duty Blade – Integrated gusset reinforcements and large blade cylinder give you the strength and durability you expect from the class leader.
feature heading: Operator Comfort
feature intro:
feature content:

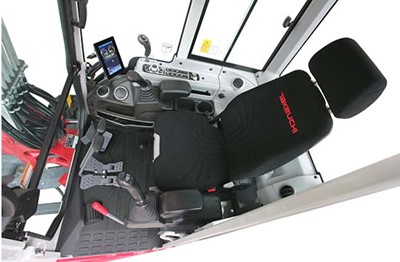

- Automotive Styled Interior – Is completely redesigned over TB200 series excavator. Spacious operator compartment is almost the same size as the conventional model, TB235-2.

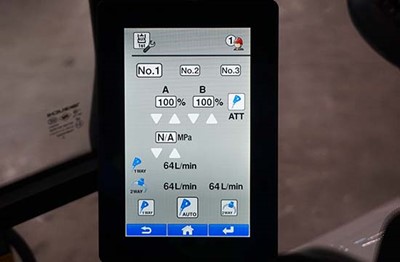

- 7” Colour Touch Screen Display (CAB) – The most machine functions and settings, including air conditioning, radio and hydraulic flow adjustment can be quickly accessed through 7” touch screen display for maximum convenience.
- Intuitive Jog Dial and Multi-Switch Control Panel – Most machine features, including engine speed can be controlled by new designed jog dial for a more intuitive operation. The multi-switch control panel offers simple and durable touch pad control of common functions.

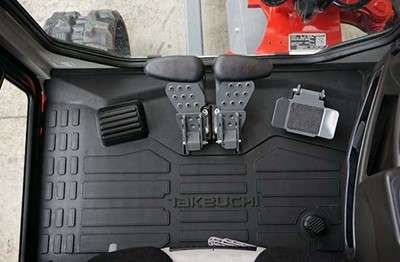

- Folding Foot Pedals – Can be placed in the stowed position for additional foot space improving operator comfort.
- Pilot Operated Joystick Controls – Deliver precise responsive controls and are low effort reducing fatigue.
feature heading: Servicability
feature intro:
feature content:

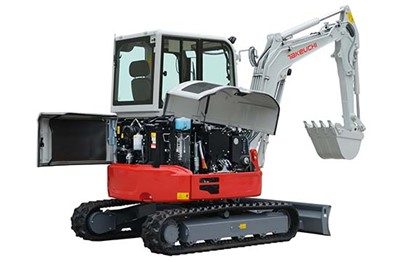

- Wide Opening Covers – Offer convenient access to main components for outstanding serviceability.

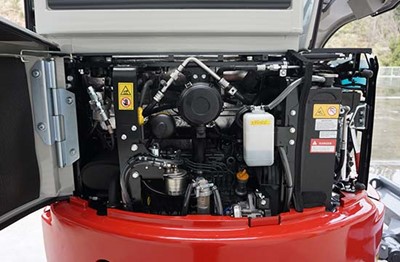

- Rear Engine Hood – Allows access to the dipstick, engine oil fil, double element air cleaner, pilot line filter, fuel filter, water separator and accumulator.
- Right Side Cover – Provides excellent access to the air breather of the hydraulic tank, hydraulic oil fill, fuel supply pomp, battery, A/C condenser, and radiator.
tk_enginePowerHp: 24
tk_maximumDigDepthMm: 3205
tk_ratedOperatingLoadKg: 0
feature:
tk_power:
tk_engineMake:
tk_engineMake:
tk_mobility: Tracked
