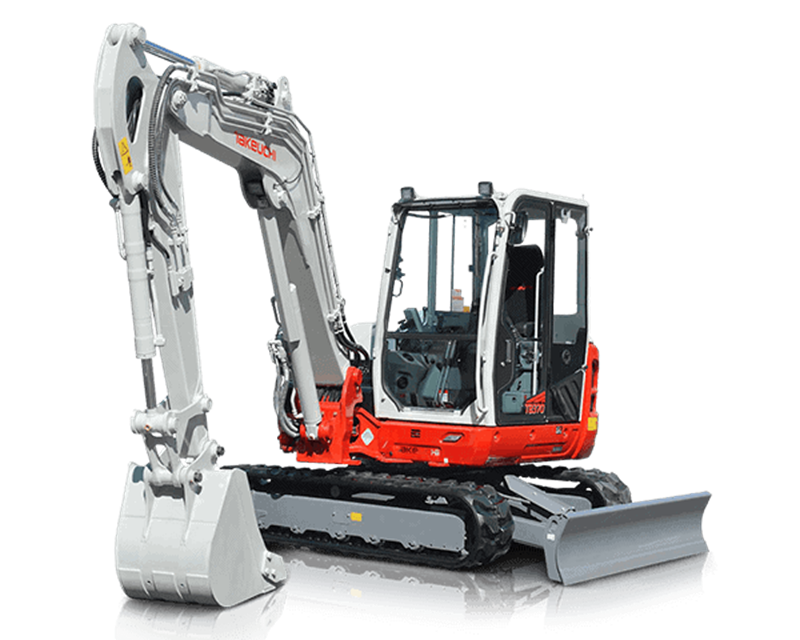

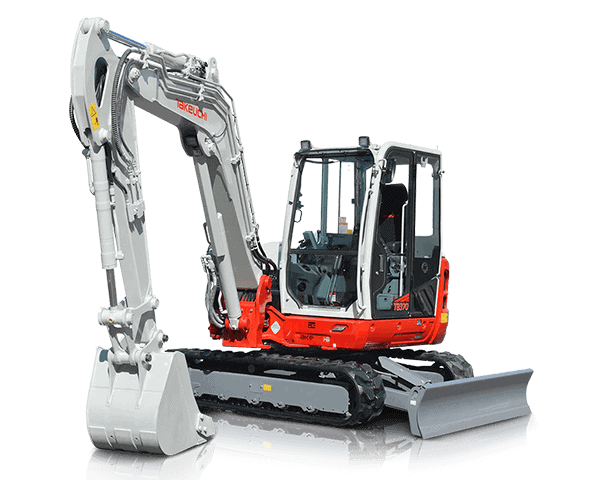

name: Takeuchi TB370 Compact Excavator
introtitle: Takeuchi TB370 Excavator
name: Takeuchi TB370 Compact Excavator
introvideo: c-EXrGnQKVM
maxloadcapacity: 0
maxliftheight: 0
minaislewidth: 0
showNoStockMessage: False
indoor: False
outdoor: True
availableforpurchase: True
availableforhire: False
surface: Concrete, Bitumen, Loose Gravel, Compacted gravel, Paved, Unsealed (dirt & grass)
Industry name: Manufacturing / Construction / Maintenance
Industry image:
Industry name: Landscaping / Nursery
Industry image:
Industry name: Forestry Products / Timber / Mining
Industry image:
tagline:
forkliftlistload:
forkliftlistindooroutdoor:
forkliftlistuse:
brochure: https://www.toyotamaterialhandling.com.au/media/dszi1dko/tmha_takeuchi_brochure_hydraulicexcavator_tb370_fa_lr.pdf
promoBannerLink:
largeImage1:
largeImage2:
largeImage3:
largeImage4:
largeImage5:
tk_operatingWeight: 6,710kg
tk_engine: Kubota V2607-CR-TE5B
tk_emission: EU Stage V/ EPA Tier 4 Compliant
tk_enginePower: 57 Hp/42.4 kW
tk_bucketCapacity: 0.18m³
tk_armBreakoutForce: 31.7kN
tk_bucketBreakoutForce: 48.4kN
tk_machineWidth: 2,100mm
tk_maximumLoadingWeight:
tk_power:
tk_operatingWeightKg: 6710
tk_tailSwing: Standard
promoBanner:
image:
intro:
- TB370 is the first model of Takeuchi’s new generation line-up, which has state-of-the-art technology and a completely redesigned automotive styled interior with intuitive user’s operation. The most machine functions and settings, including air conditioning, radio, rear / 270°view monitor (optional) and engine speed can be quickly accessed through 8” touch screen display and jog dial controls for maximum convenience.
- TB370 has very low external noise levels and are specially well-suited for work in urban areas while offering outstanding engine power and hydraulic performance. Also it delivers best in class working range for extra productivity.
- (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
tk_ratedOperatingLoad:
tk_maximumDigDepth: 4,085mm
feature heading: Performance
feature intro:
feature content:
- EU Stage Ⅴ Compliant Engine – Provides best in class output and greater torque while delivering very low external noise levels.
- Optimized Design – The rounded design features a contemporary look, and the conventional tail swing delivers excellent stability.

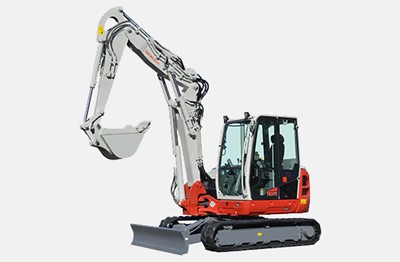

- Outstanding Working Range – Offers extra productivity. Optional 2-Piece Boom enables the machine to work with a bigger reach while reducing the need to continually re-position the excavator.
- 1st & 2nd Auxiliary Hydraulics Plumbed to Mid Arm – Allows the TB370 to be a versatile attachment platform. Up to 4 auxiliary hydraulic lines are available for the most variability.
- Optional Rear / 270°View Monitor – Highly improves visibility and safety around the machine. Especially 270°view monitor offers all-around-view visibility and TB370 is the first compact excavator to have 270°bird’s eye view monitor system.
- Optional Bucket Operation Angle Selection Device – Enables the operator to switch the bucket angle between 125 deg and 195 deg from the operator’s seat without getting on/off the machine.
feature heading: Durability
feature intro:
feature content:

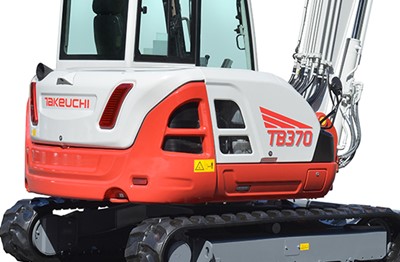

- Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.

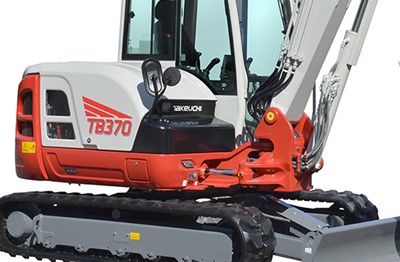

- All Steel Construction – The engine hood, side covers and access panels are all steel for extra durability.
- Heavy Duty Blade – Integrated gusset reinforcements and large blade cylinder give operator the strength and durability which operator expects from the class leader.
feature heading: Operator Comfort
feature intro:
feature content:

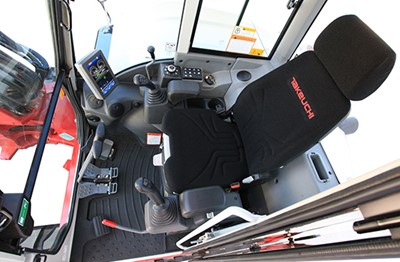

- Automotive Styled Interior – Is completely redesigned over TB200 series excavator. Spacious operator environment offers superior operator comfort and less fatigue.
- 8” Colour Touch Screen Display – The most machine functions and settings, including air conditioning, radio and rear / 270°view monitor (optional) can be quickly accessed through 8” touch screen display for maximum convenience.
- Intuitive Jog Dial and Multi-Switch Control Panel – Most machine features, including engine speed can be controlled by new designed jog dial for a more intuitive operation. The multi-switch control panel offers simple and durable touch pad control of common functions.
- Automatic Climate Control System – Offers precisely controlled cab temperature for a more comfortable environment.
- Adjustable Arm Rests – enable operator to adjust height of arm rest without some tools.
- Optional Air Suspension Seat with Heat – Ensures that operator will be riding in maximum comfort while enduring every type of rough application.
feature heading: Serviceability
feature intro:
feature content:
- Wide Opening Covers – Offer convenient access to main components for outstanding serviceability.

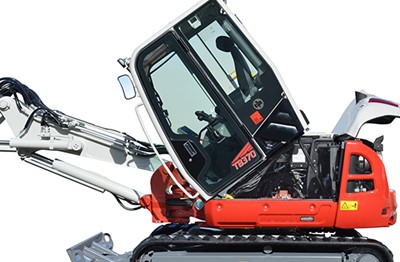

- Tilt-Up Cabin – Allows access to the control valve, hydraulic pump group and slewing motor.

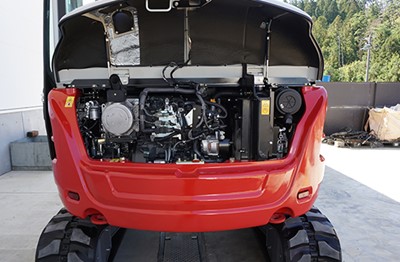

- Engine Hood – Provides access to daily checks and routine maintenance points including double element air cleaner, pilot line filter, dip stick, radiator and engine oil fill.
tk_enginePowerHp: 57
tk_maximumDigDepthMm: 4085
tk_ratedOperatingLoadKg: 0
feature:
tk_power:
tk_engineMake:
tk_engineMake:
tk_mobility: Tracked
