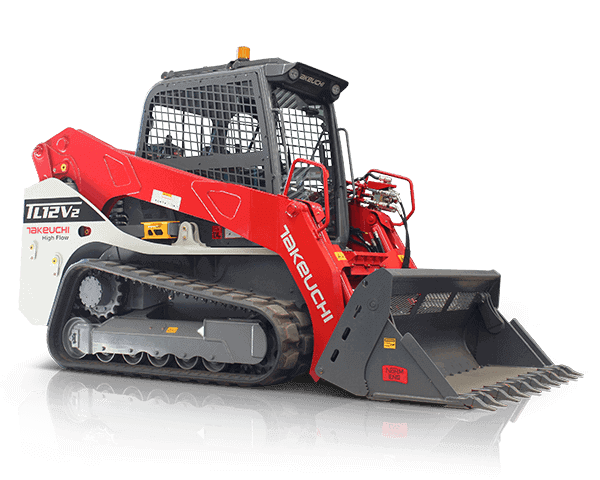

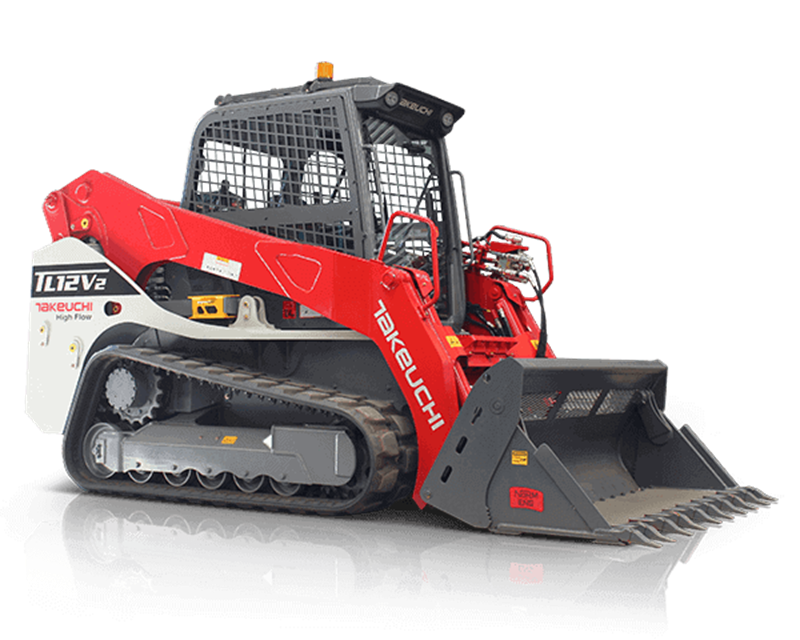

name: Takeuchi TL12V-2 Track Loader
introtitle: Takeuchi TL12V-2 Track Loader
name: Takeuchi TL12V-2 Track Loader
introvideo: sEXccjED4ig
maxloadcapacity: 2663
maxliftheight: 2330
minaislewidth: 2030
showNoStockMessage: False
indoor: False
outdoor: True
availableforpurchase: True
availableforhire: False
surface: Concrete, Bitumen, Loose Gravel, Compacted gravel, Paved, Unsealed (dirt & grass)
Industry name: Manufacturing / Construction / Maintenance
Industry image:
Industry name: Forestry Products / Timber / Mining
Industry image:
Industry name: Landscaping / Nursery
Industry image:
tagline:
forkliftlistload:
forkliftlistindooroutdoor:
forkliftlistuse:
brochure: https://www.toyotamaterialhandling.com.au/media/hj1jbnm3/tmha_takeuchi_brochure_compacttrackloader_tl12v2_fa_lr.pdf
promoBannerLink:
largeImage1:
largeImage2:
largeImage3:
largeImage4:
largeImage5:
tk_operatingWeight: 5,835kg
tk_engine: Kubota/V3800
tk_emission: EU Stage V/EPA Tier 4 Emission Compliant
tk_enginePower: 110 Hp/81.8 kW
tk_bucketCapacity:
tk_armBreakoutForce: 31.6kN
tk_bucketBreakoutForce: 35.0kN
tk_machineWidth: 1960mm
tk_maximumLoadingWeight:
tk_power:
tk_operatingWeightKg: 5835
tk_tailSwing:
promoBanner:
image:
intro:
- The TL12V-2 features a vertical lift loader arrangement and sets another benchmark for compact track loaders by delivering one of the most capable and innovative machines available to the market today. The cab has been completely redesigned and enlarged and now features a smooth low effort overhead door design for improved entry and egress. A quiet track design with flotation pads reduces vibration, noise levels, and improves ride quality.
- (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
tk_ratedOperatingLoad: 1,865kg
tk_maximumDigDepth:
feature heading: Performance
feature intro:
feature content:
- Powerful and Efficient – The turbocharged, after cooled engine delivers an excellent blend of power and performance and it features a DOC+DPF +SCR exhaust after treatment system.
- Vertical Lift Loader – Designed to deliver exceptional. performance and improved tipping load and rated operating capacity.

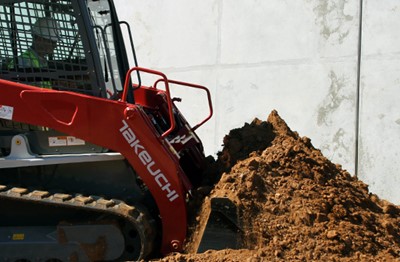

- Automatic Power Control – Maintains engine power for optimal performance, and it may be engaged or disengaged by the operator.
- Quiet Ride Track – Allows rollers to ride on a rubber contact pad for reduced vibration and a quieter ride, and the wide block tread improves flotation.
- Multiple Working Modes – Power mode delivers maximum power and performance, and ECO mode reduces fuel consumption and is ideal for less demanding applications.

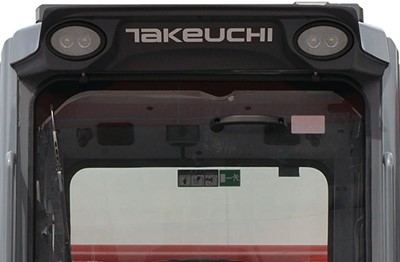

- Front and Rear LED Work Lights – Provide excellent illumination in low light conditions for greater peace of mind.
feature heading: Durability
feature intro:
feature content:
- Rear Bumper with Tie Downs – Delivers greater protection to the rear of the machine and simplifies anchoring the machine for transport.
- Heavy Duty Cross Member – Protects bucket cylinders from damage and it has been lowered for improved attachment visibility.

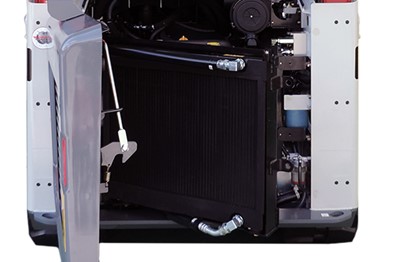

- High-Capacity Cooling Module – Enables machine to run cooler and more efficiently for improved component life and attachment efficiency.

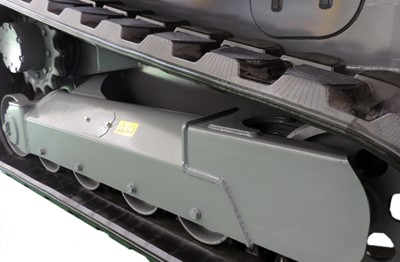

- Purpose Built Frame – Features multiple cross members for greater strength and rigidity.
- Oversized Pins and Bushings – For greater strength where it matters.
- Heavy Duty Lift Cylinders – Are over built for greater durability and deliver excellent lifting performance.
feature heading: Operator Comfort
feature intro:
feature content:

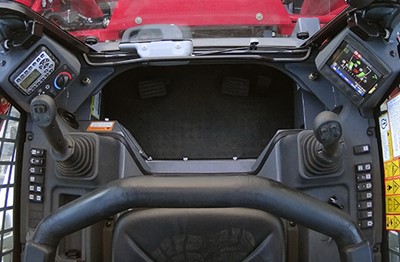

- Pilot Joystick Controls – Respond immediately to operator input for greater control and performance, and they are low effort for excellent comfort.
- Improved Foot Throttle Position – Allows the operator’s foot to be in a more natural position for greater comfort and reduced fatigue.

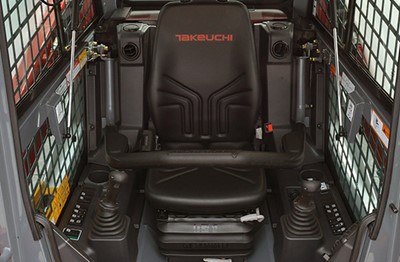

- Deluxe High Back Suspension Seat – Allows the operator to remain comfortable throughout the workday by providing a wide array of settings that include adjustments for height which also improves attachment visibility.
- Electronic Throttle Control – Is easily adjusted and can be quickly set to the operator’s preferred setting.
- Colour Multi-Information Display – Features a 5.7 full colour display that provides the operator with pertinent machine information, allows the operator to adjust hydraulic flow from the seat, and has a wide range of attachment presets that can be set-up.
- Advanced Interior Design – Features a spacious cabin, improved functionality, updated rocker switch layout, 12v accessory outlet, and multiple cup holders.
feature heading: Serviceability
feature intro:
feature content:
- Hydraulic Oil Sight Gauge – Is easily seen by the operator as they enter the machine.
- Alternator Accessibility – Is greatly improved due to the removable access panel located on the fan shroud.
- Rear Tower Clean-outs – Are accessible through the right/left towers for convenience, easy inspection, and cleaning.
- Simplified Battery Access – Is now available through a bolt-on panel located on the left tower.

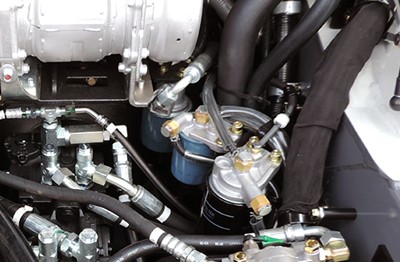

- Clustered Fuel and Engine Oil Filters – Are positioned together beneath the tilt up cabin for greater convenience, and they spin-on from the bottom resulting in minimal clean-up.
- Fuel and DEF Fluid Fill – Features an audible alarm that alerts the operator when the fluid level is nearing the fill point reducing spills and clean-up.
tk_enginePowerHp: 110
tk_maximumDigDepthMm: 0
tk_ratedOperatingLoadKg: 1865
feature:
tk_power:
tk_engineMake:
tk_engineMake:
tk_mobility: Tracked
