name: Takeuchi TL8R-2 Track Loader
introtitle: Takeuchi TL8R-2 Track Loader
name: Takeuchi TL8R-2 Track Loader
introvideo: c6WCqKgXM6o
maxloadcapacity: 1370
maxliftheight: 2230
minaislewidth: 1675
showNoStockMessage: False
indoor: False
outdoor: True
availableforpurchase: True
availableforhire: False
surface: Concrete, Bitumen, Loose Gravel, Compacted gravel, Paved, Unsealed (dirt & grass)
Industry name: Manufacturing / Construction / Maintenance
Industry image:
Industry name: Forestry Products / Timber / Mining
Industry image:
Industry name: Landscaping / Nursery
Industry image:
tagline:
forkliftlistload:
forkliftlistindooroutdoor:
forkliftlistuse:
brochure: https://www.toyotamaterialhandling.com.au/media/huke4hz1/tmha_takeuchi_brochure_compacttrackloader_tl8r2-fa_lr.pdf
promoBannerLink:
largeImage1:
largeImage2:
largeImage3:
largeImage4:
largeImage5:
tk_operatingWeight: 4,165kg
tk_engine: Kubota/V3800
tk_emission: EU Stage V/EPA Tier 4 Emission Compliant
tk_enginePower: 73 Hp/54.6 kW
tk_bucketCapacity:
tk_armBreakoutForce: 26.5kN
tk_bucketBreakoutForce: 27.6kN
tk_machineWidth: 1660mm
tk_maximumLoadingWeight:
tk_power:
tk_operatingWeightKg: 4165
tk_tailSwing:
promoBanner:
image:
intro:

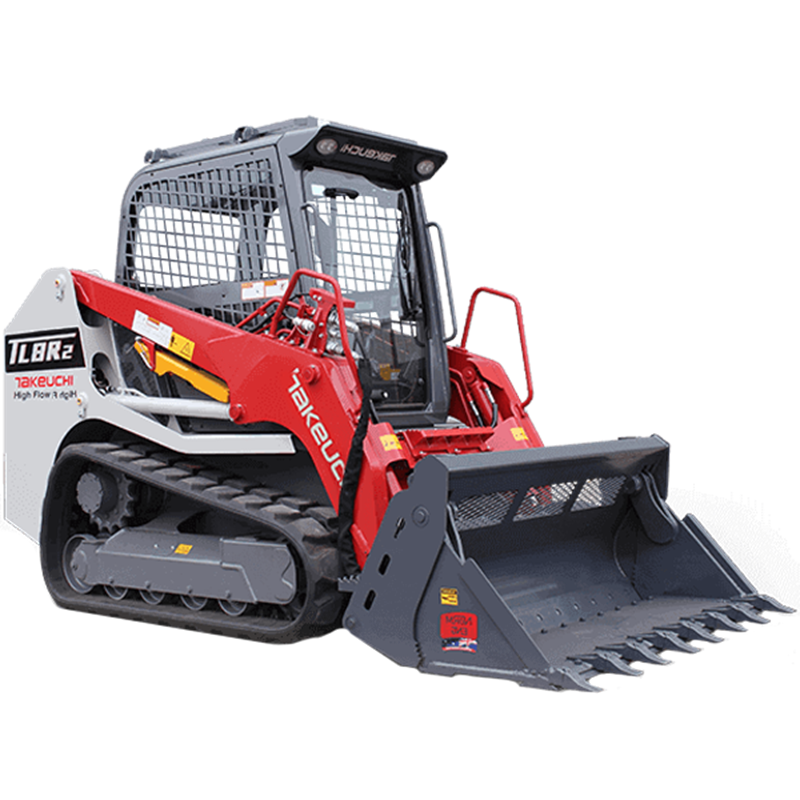

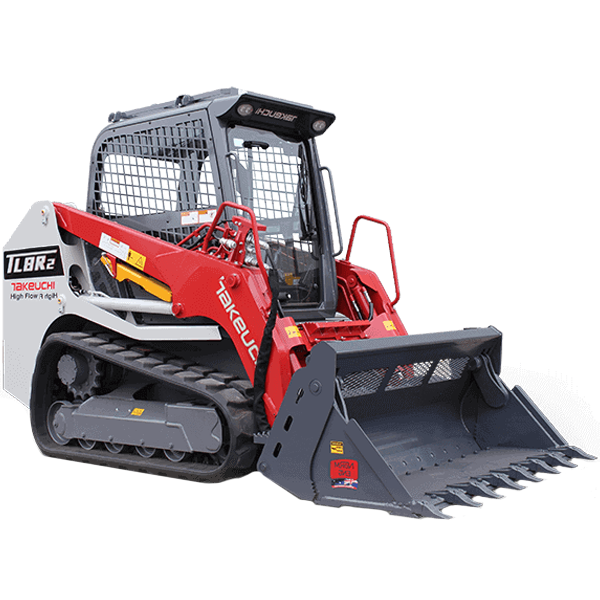

- The versatile TL8R-2 is small enough to get into those tight areas, light enough to transport easily, and powerful enough to be your go to machine for landscaping and rental applications.
- (Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).
tk_ratedOperatingLoad: 960kg
tk_maximumDigDepth:
feature heading: Performance
feature intro:
feature content:

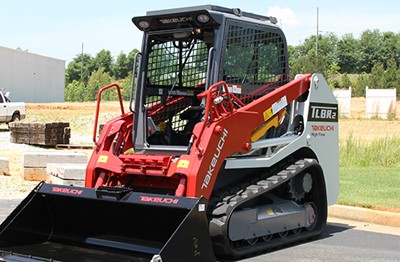

- Heavy Lifter – Improved lift arm force provides outstanding lifting power.
- Stay in Your Seat – Hydraulic flow is adjusted from the comfort of the operator’s seat, and attachment settings can be stored in the new monitor. Multiple work modes allow you to choose the mode suited to your application.
- Powerful Drives – Double reduction planetary drives provide exceptional pushing power, delivering manoeuvrability, outstanding performance, and the standard two speed travel allows for increased travel speeds.

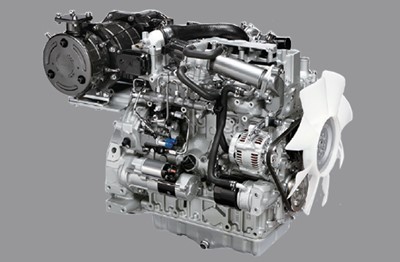

- New Power Plants – Powerful new engines deliver excellent performance and are EPA Final Tier 4 / EU Stage V Compliant.
- Total Package – Improved operating capacity coupled with tremendous breakout force allow you to get the job done more efficiently.
- Unparalled Tractive Force – Provides tremendous track power, allowing the machine to perform in the most demanding applications.
feature heading: Durability
feature intro:
feature content:
- Tough and Dependable – Front idler rollers are robust and feature larger bearings for slower shaft speeds extending component life.
- Built to Last – The heavy duty rear door is built to protect the radiator and oil cooler from rear impacts, and will provide years of service and dependability.

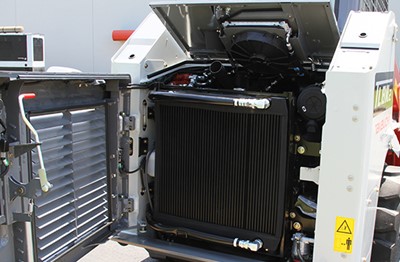

- Keep it Cooler – The industrial sized side-by-side radiator and oil cooler are extremely efficient and provide unmatched cooling performance for greater component life.

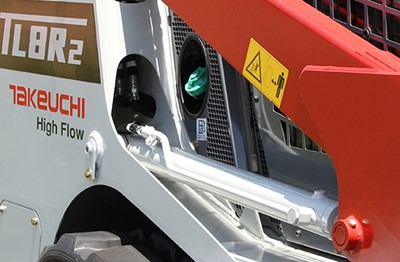

- Reduced Shock – Cushioning on the arm cylinders reduces shock, and protected cylinders and steel lines improve product longevity.
- Purpose Built Frame – Features multiple cross members for greater strength and rigidity.
- Quiet Ride Track – Allows rollers to ride on a rubber contact pad for reduced vibration and a quieter ride, and the wide block tread improves flotation.
feature heading: Operator Comfort
feature intro:
feature content:

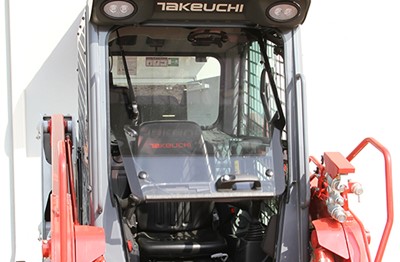

- Machine Data – Both canopy and cab units feature a new monitor panel that provides the operator with more functionality, and features new coolant temperature and fuel gauges. New icons include work modes, engine fault, bucket float, and hydraulic mode.
- Comfort and Convenience – The operator’s station on the new TL8 is well appointed and spacious for outstanding comfort.
- Pilot Joystick Controls – Respond immediately to operator input for greater control and performance, and they are low effort for excellent comfort.
feature heading: Serviceability
feature intro:
feature content:

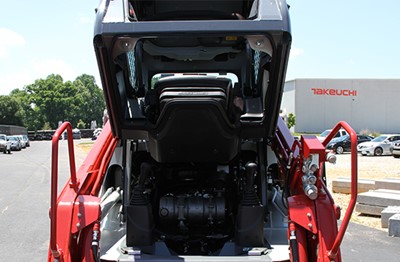

- Open Up – With a tilt back operator’s station and large removable belly pans routine maintenance, and cleaning is easy to perform.
- Clean Air – The double air filters are mounted on a tilt-up platform for easy service.

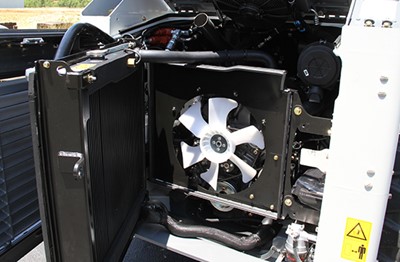

- Keep it Cool – The high capacity, side by side radiator and hydraulic oil cooler not only provide excellent cooling capacity, but the entire module also swings out for easy cleaning and inspection.
tk_enginePowerHp: 73
tk_maximumDigDepthMm: 0
tk_ratedOperatingLoadKg: 960
feature:
tk_power:
tk_engineMake:
tk_engineMake:
tk_mobility: Tracked
